11kva 48v TAICO Veil.Max GD11048MH Hybrid Solar Inverter – High-Performance Off-Grid Power Solution

Description

TAICO Veil.Max GD11048MH 11kW Hybrid Solar Inverter – High-Performance Off-Grid Power Solution

Power your home, business, or industrial setup with confidence using the TAICO Veil.Max GD11048MH 11kW Hybrid Solar Inverter – a next-generation energy solution engineered for efficiency, reliability, and versatility.

🔋 Key Features:

High Capacity Output: Rated at 11,000VA / 11,000W, the GD11048MH supports large energy loads, making it ideal for residential, commercial, and small industrial applications.

Hybrid Operation Modes: Functions seamlessly in Inverter Mode, AC Input, and Solar Mode, allowing for flexible energy sourcing.

Advanced Solar Support: Compatible with high-efficiency solar arrays with dual 5500W inputs (2×5500W), supporting up to 500VDC for maximum solar harvesting.

High Current Charging: Integrated 150A max charging current ensures rapid and stable battery charging from both AC and solar inputs.

Battery Compatibility: Designed for 48VDC battery banks with a robust 254.6A DC input, perfect for off-grid and backup energy systems.

Wide Voltage Range: Operates across a 90–500VDC solar input range, with best efficiency between 300–400VDC, ensuring compatibility with a wide range of PV panels.

Smart AC Features: Offers 230V AC output with 50/60Hz auto-detection, supporting a stable 47.8A single-phase output.

Durable Design: Built to withstand tough environments with IP21 protection and an operating temperature range of -10°C to 50°C.

—

⚙️ Technical Specifications:

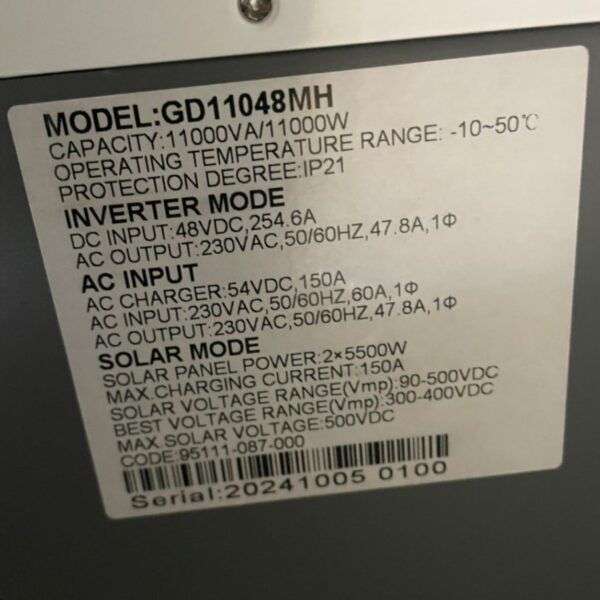

Parameter Specification

Model GD11048MH
Rated Power 11000VA / 11000W
DC Input (Inverter Mode) 48VDC, 254.6A
AC Output (Inverter/AC Mode) 230V AC, 50/60Hz, 47.8A, 1Φ
AC Input for Charging 230V AC, 50/60Hz, 60A, 1Φ
AC Charger Output 54VDC, 150A
Solar Panel Support 2 × 5500W
Solar Voltage Range (Vmp) 90–500VDC (Best: 300–400VDC)
Max. Solar Voltage 500VDC
Protection Level IP21
Operating Temp. -10°C ~ 50°C

—

🌞 Why Choose TAICO Veil.Max GD11048MH?

Ideal for off-grid, hybrid, and backup power systems.

Efficient MPPT solar charging to maximize your solar investment.

Supports large appliances and power tools with ease.

Designed with reliable circuit protection and thermal management.

Trusted brand for solar inverter reliability and performance.

—

📦 Applications:

Residential solar systems

Commercial solar backup

Rural electrification

Telecom and data centers

Industrial workshops

—

Power up with TAICO – Clean Energy, Maximum Reliability.
Order your GD11048MH Solar Inverter today and take control of your energy future.
